USB Digital Potentiometer

UsbPot device

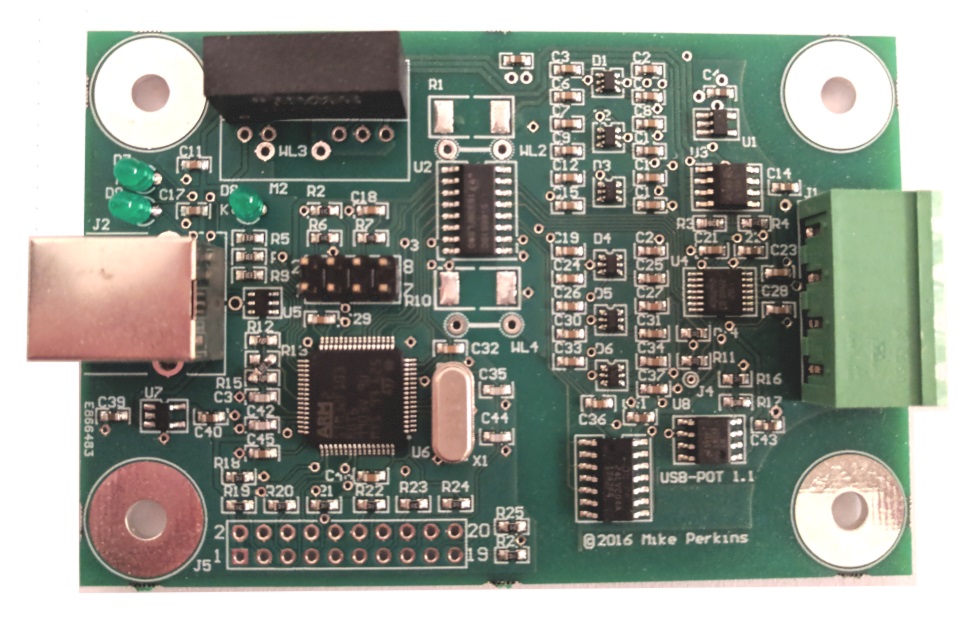

The UsbPot device is a USB controlled Digital Potentiometer, based on the Analog Devices AD5292 IC. The UsbPot can be supplied either boxed or unboxed for easy system integration. Eclectric provides a Windows GUI software application, freely available to download from the Software page. Direct communication with the UsbPot device is also possible via the command line or a virtual terminal using a serial port connection on Windows and Linux.

Features include:

• 20kΩ digitally controlled potentiometer
• Based on AD5292
• 1024 position wiper
• User programmable default wiper position
• 1,000V isolation
• 12V compliance wrt 0V pin
• Rugged box / Bare PCB
• USB powered (no other power source required)
• USB controlled
• Uses Windows Serial Drivers
• Command line or GUI supplied application
• Windows or Linux (command line only)
• Hot-pluggable connection performance achievable with Windows 7 and Windows 10 using the freely supplied UsbPot GUI software
• User programmable default wiper position

Main features of the AD5292 digital potentiometer include:

• Single-channel, 1024-position resolution
• 20 kΩ, (50 kΩ, and 100 kΩ optonal) nominal resistance
• Maximum ±1% nominal resistor tolerance error
• 20-times programmable wiper memory
• Rheostat mode temperature coefficient: 35 ppm/°C
• Voltage divider temperature coefficient: 5 ppm/°C

Please refer to the Analog Devices AD5292 datasheet for more comprehensive information, available here.

Help and support

For more information regarding the UsbPot device and operation please refer to the Eclectric Wiki UsbPot page.

---
